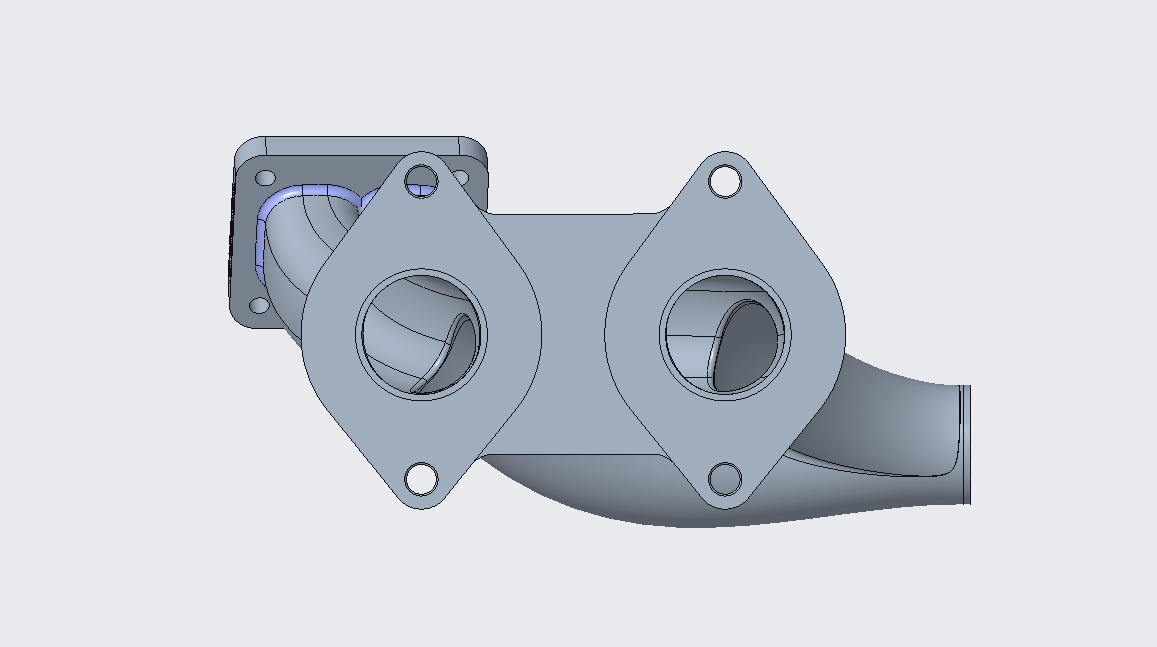

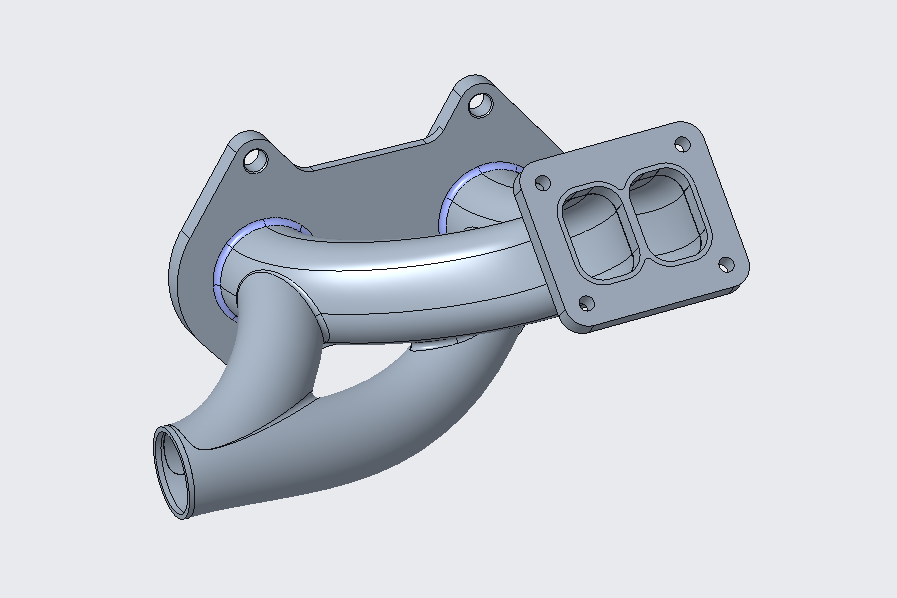

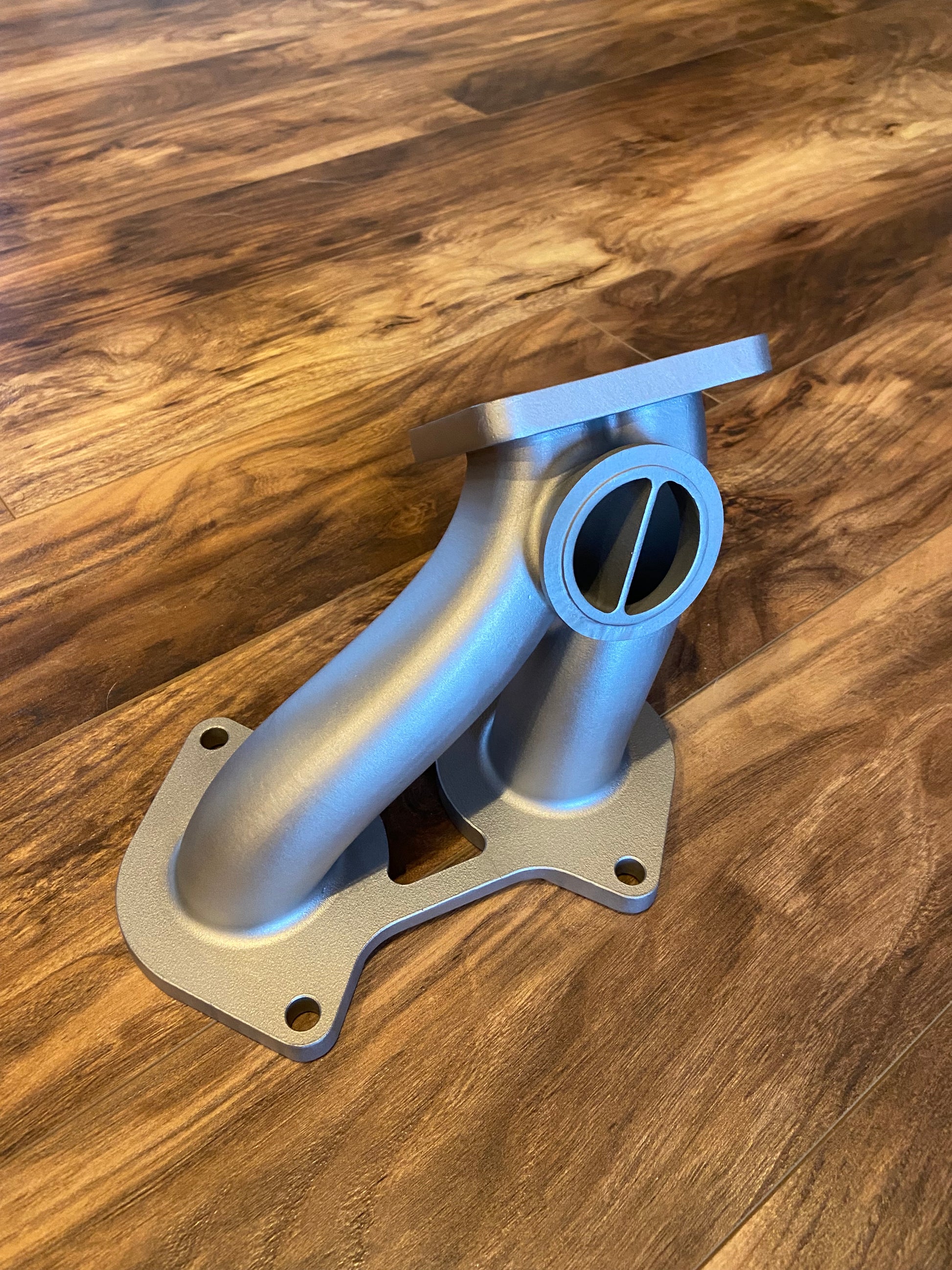

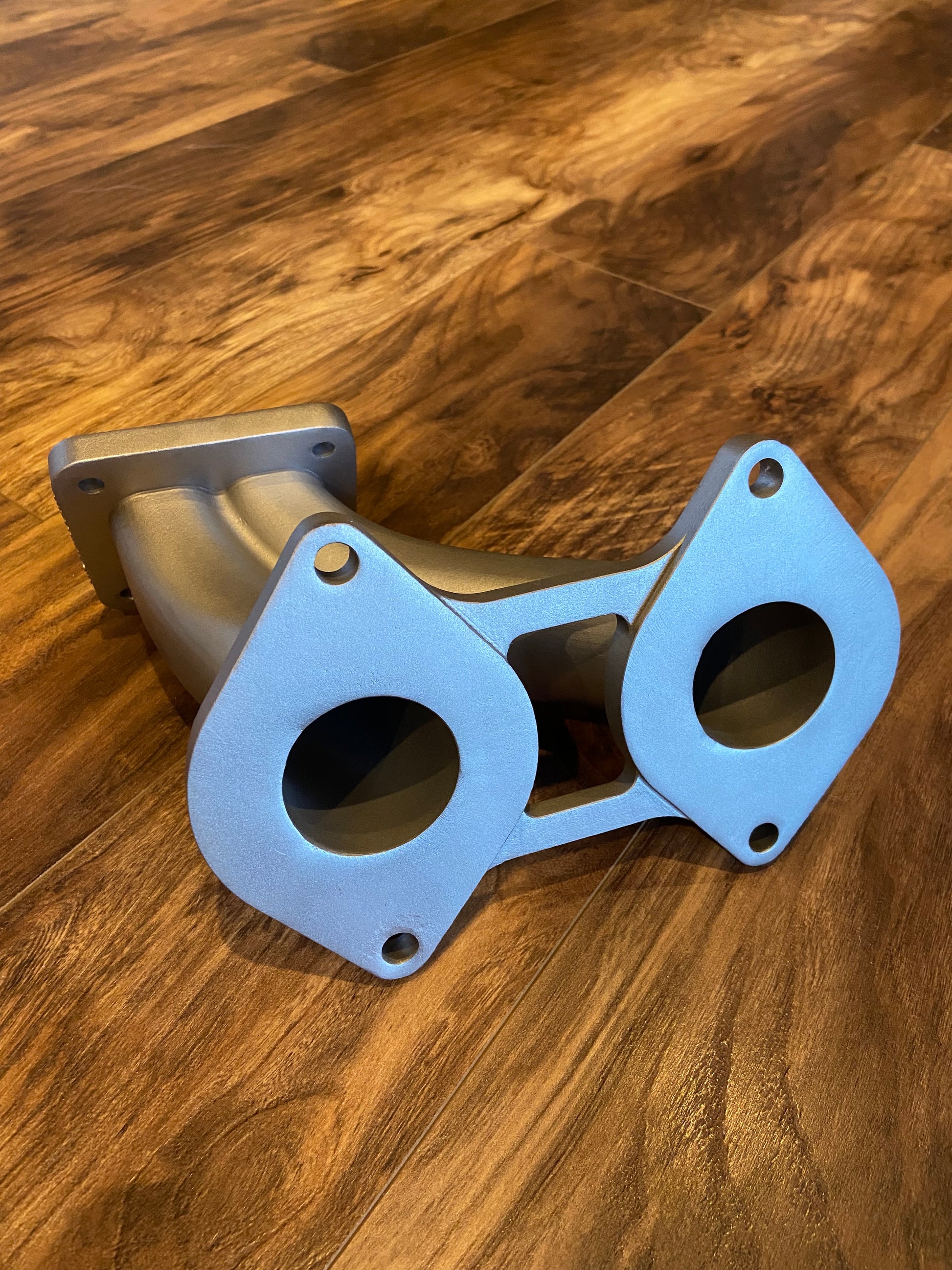

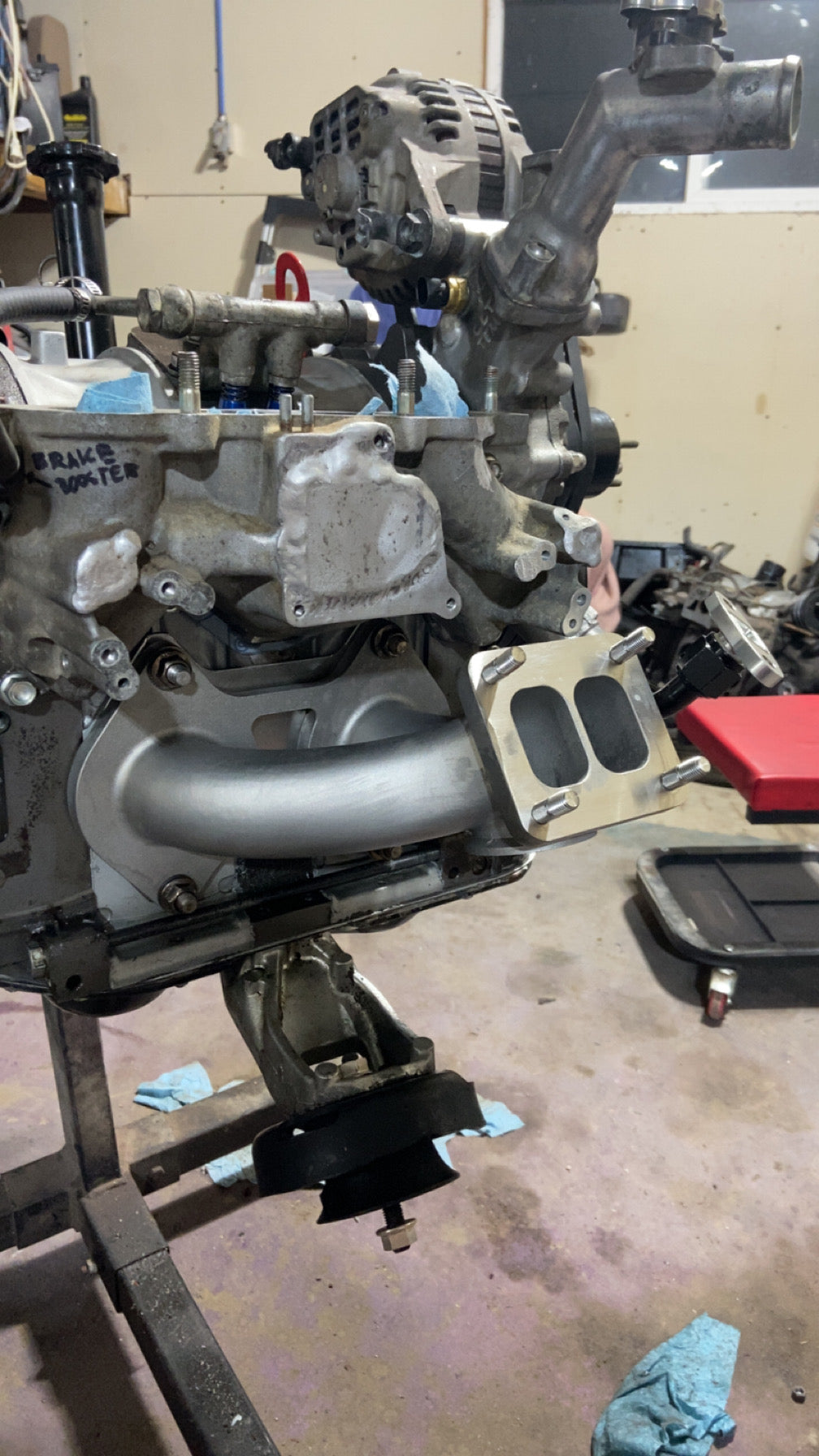

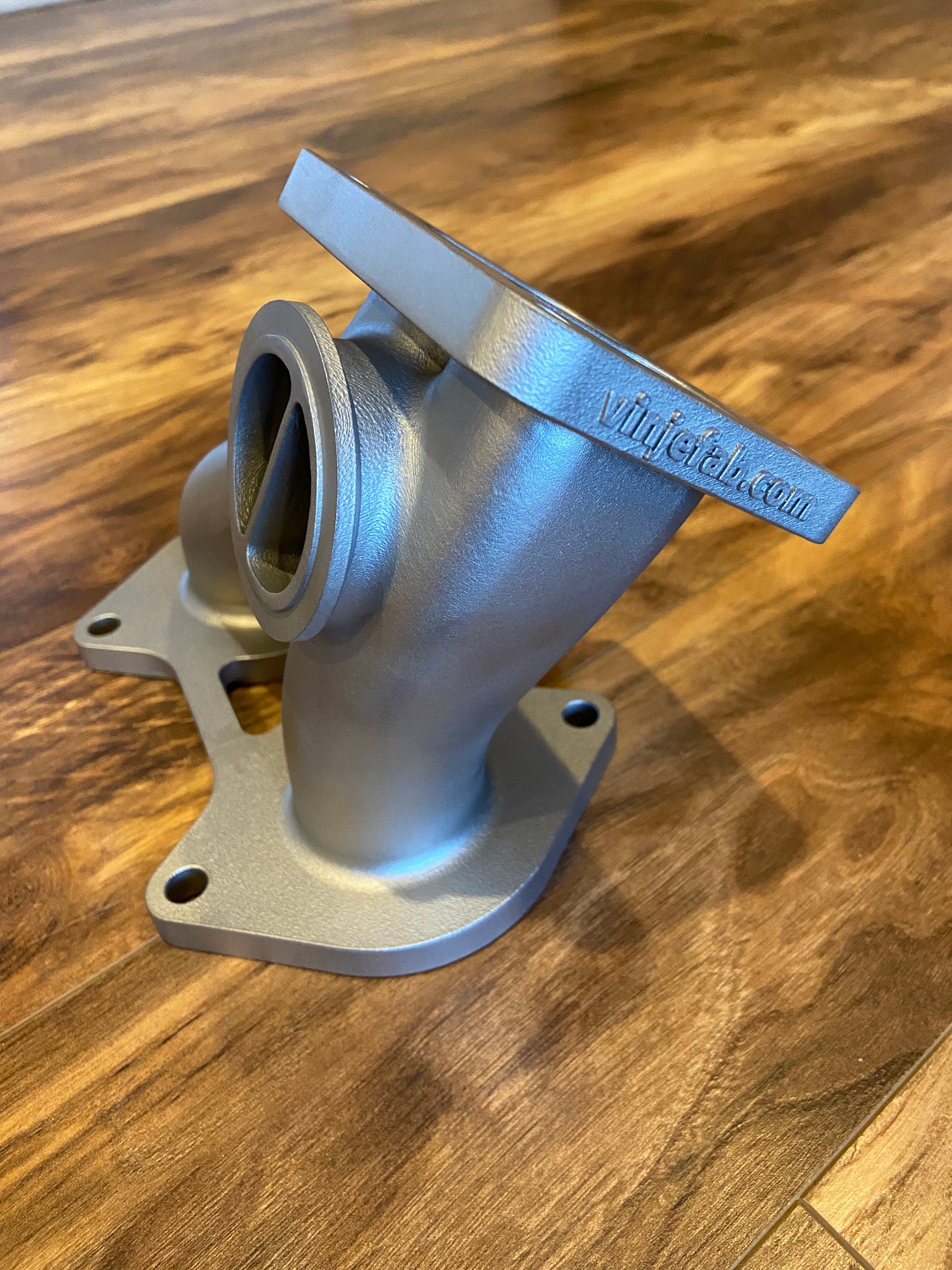

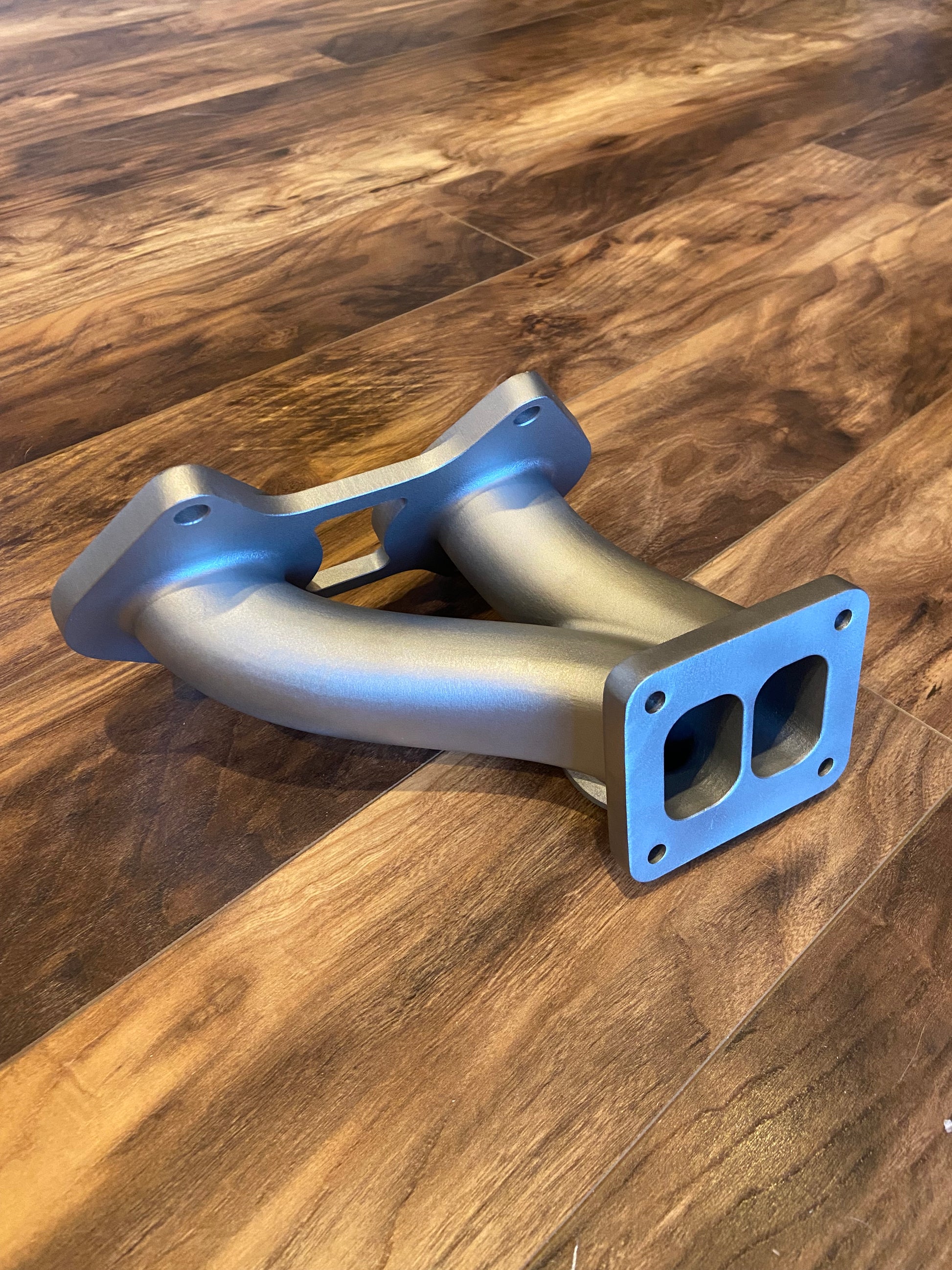

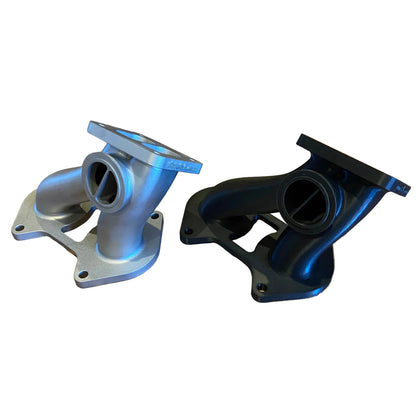

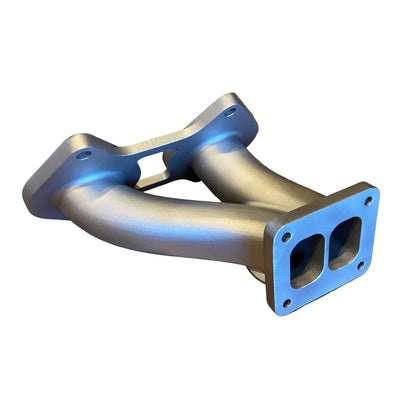

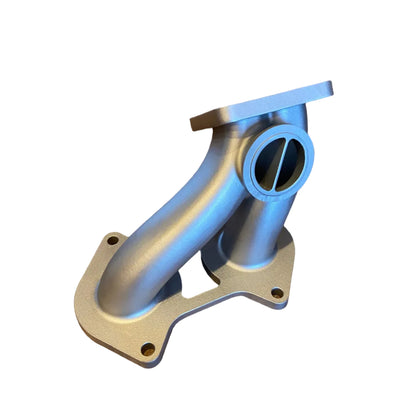

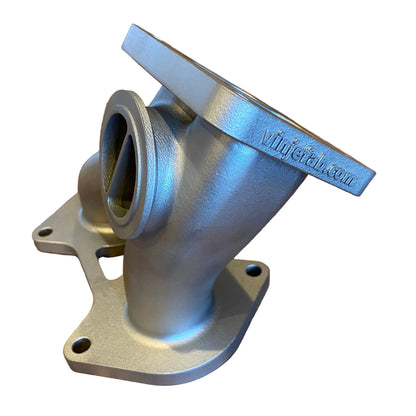

3D Printed RX7 Manifold

Looking for product testers! Message me on insta or email me!

Insta: jackvinje.rx7 Email: jackvinje151@gmail.com

These manifolds are better than the standard “cut and welded” manifold in multiple ways. 3D printed manifolds offer benefits over typical manifolds such as runners which are tapered from the engine exhaust port, all the way to the turbine housing. This increases exhaust pulse velocity and is only possible with 3D printing and casting. 3D printed manifolds are also less likely to crack compared to cut and welded manifolds.

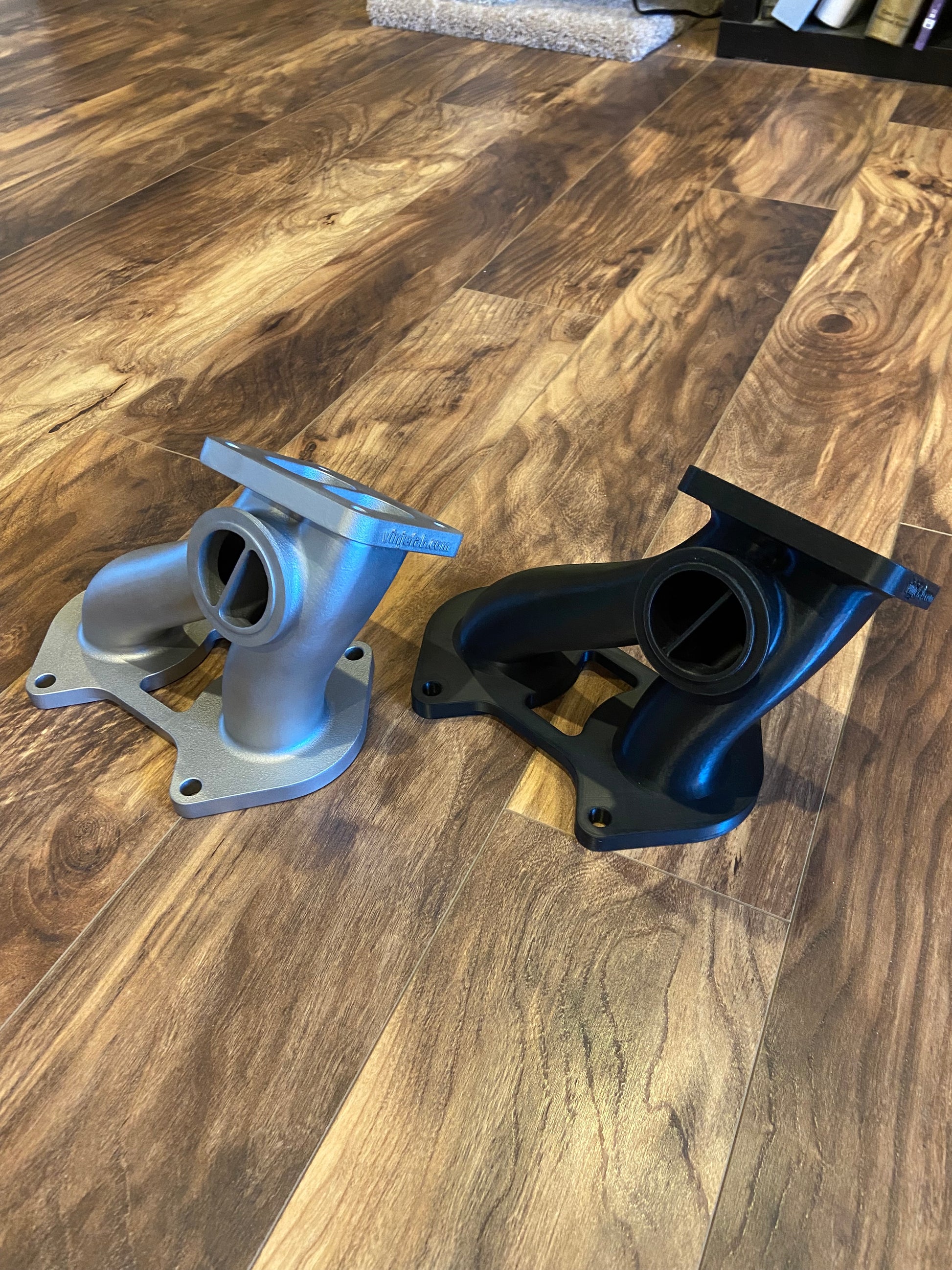

Your manifold will come with these defaults unless otherwise specified. Fit up/test prints do not come standard with your manifold and will need to be ordered separately.

Material:  316L Stainless Steel

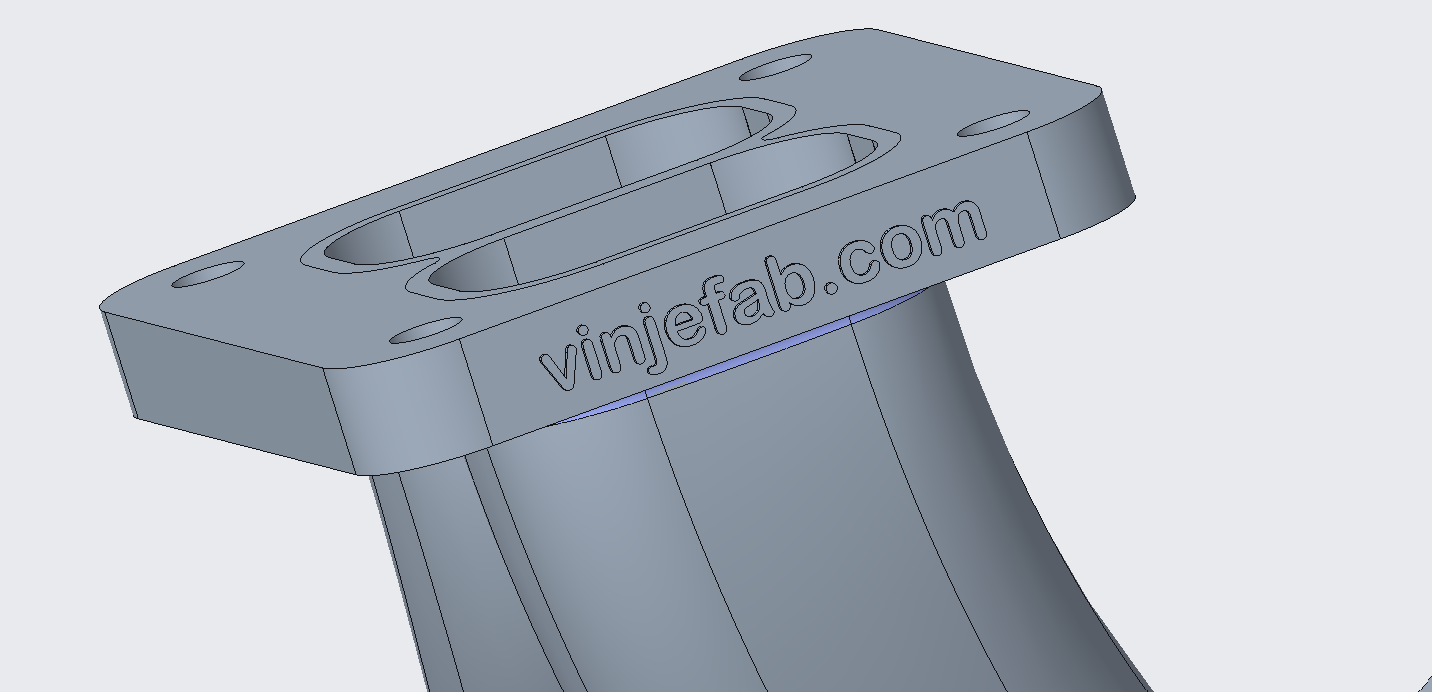

Turbo Flange: T4 Divided

Wall Thickness: 0.108" (2.75mm)

Options Include but are not limited to:
-EGT sensor bungs
-EMAP sensor port
-AFR sensor ports
-Any turbo flange (T4, T3, T6, divided/undivided)
-Wastegate type/brand (wastegate flange welded on)
-Wastegate quantity
-Wastegate location
-Wall thickness-Flange thickness

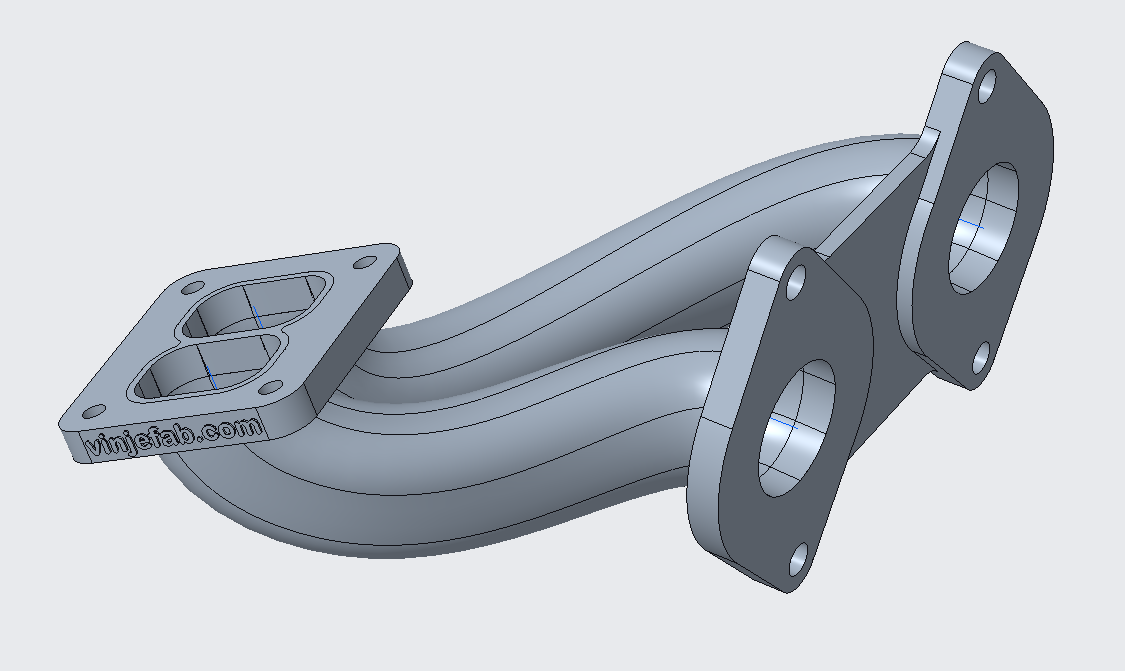

-Equal/Unequal Runner length
-Material type (stainless($), titanium($$), inconel ($$$))
-Style (side mount/forward mount)
-Swap friendly!! (Best to send 3d scans of turbo placement and engine placement for optimal design)
